Scarifier Concrete
| Working Width | 340 mm |
|---|---|
| Voltage | 400 V |
| Frequency | 50 Hz |
| Phase | 3 |
| Current Consuption | 32.6 A |
| Motor nominal Current | 18.5 kW |
| Motor Rating | 32.6 A |
| Motor Rotation Speed | 2935 rpm |
| Weight (kg) | 480 kg |
| Height (mm) | 114 cm |
| Length (mm) | 135 cm |
| Width (mm) | 70 cm |
| Dust Collector | R2D2 |
| Dust Port Diameter | 125 mm |
| Motor nominal Current (Drive Unit Motor) | 2 x 0.18 kW |
| Motor Rotation Speed (Drive Unit Motor) | 3000 rpm |
With conventional floor planers and scarifiers, the milling depth (cutting depth) is changed by lowering the entire machine using the rear wheels. This also influences the geometry of the machine, for example the height of the grip.

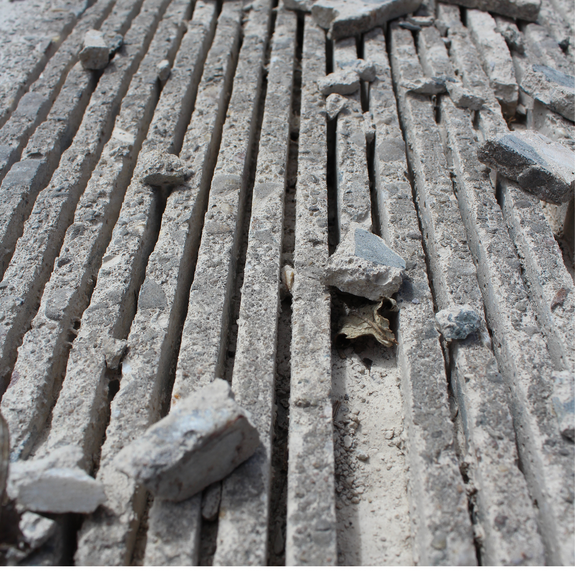

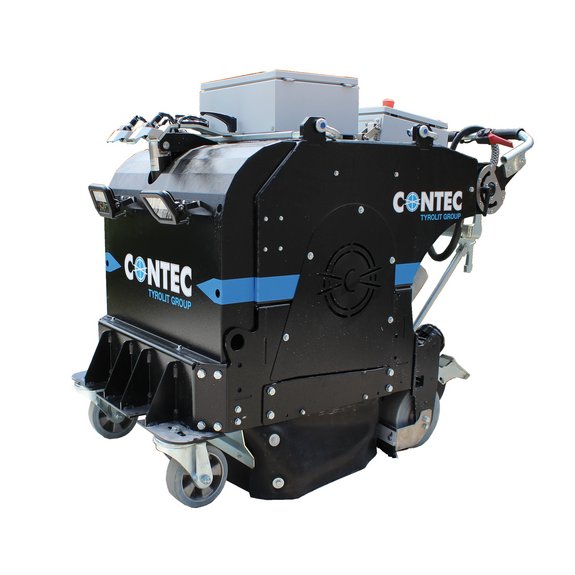

The CT 340 lowers the milling drum in the machine frame. The ergonomics of the machine are not changed and cutting depths of up to 50 mm are possible. As with the proven CT 340 from CONTEC, the continuously variable speed drive is standard. With the CT 340, however, this is implemented hydraulically. Ergonomically cushioned handles ensure fatigue-free operation of the CT 340. Specially manufactured diamond tools enable slatted floors and walkways to be milled to increase slip resistance (grooving). Variable cutting width for joint renovation and/or full width for distance milling (shaving) is also possible.
Diamond Disc for normal to hard concrete and screed
For the Cutting of normal to hard Concrete
Diamond Disc for very hard concrete
Suitable for the cutting of hard to very hard Concrete
Diamond Disc for hard to very hard concrete / screed
For the Cutting of hard to very hard C
PCD Tool
PCD Tool for the PCD Drum
CT 320/340 Diamond Drum
CT 320/340 Diamond Drum
The drum can be equipped with diamond blades. Spacers in between the blades allow, for example, farm yard grooving for anti slip floors in stables. When the drum is completely equipped with diamond blades, as shown in the picture, the floor will be totally removed. Depths of up to 20 mm (standard version) are possible. The speed control of the CT 320/340 planer enables an optimal, clean finish.
CT 320/340 PCD Drum
