Scarifier Concrete
| Working Width | 320/340 Diamanttrommel/Diamond Drum mm |
|---|---|
| Motor nominal Current | 31 PS kW |
| Motor Rotation Speed | 3600 rpm |
| Weight (kg) | 267 kg |
| Height (mm) | 118 cm |
| Length (mm) | 110 cm |
| Width (mm) | 66 cm |
| Dust Collector | TORNADO/R2D2 |
| Dust Port Diameter | 70/125 mm |
| Motor nominal Current (Drive Unit Motor) | 0.17 kW |
| Motor Rating (Drive Unit Motor) | 1.2 A |
| Motor Rotation Speed (Drive Unit Motor) | 3000 rpm |
The biggest and most aggressive floor planer from CONTEC© now available with a 31 hp petrol engine. Independent from a power supply. A generator is not necessary. Made for the hardest applications and floors. Heavy duty bearings ensure maintenance and trouble-free operation of the machine. CT 320 ® is equipped with a variable speed drive unit. Ergonomically designed handle bars ensure comfortable operation of the floor planer.
The CT 320® displays tremendous aggressiveness during the removal of concrete, asphalt, coatings and road markings. Milling cutters or diamond tools ensure problem free removal of flexible epoxy coatings and road markings. Specially designed diamond tools for use in “Farmyard Grooving“ result in anti-slip surfaces every time. Variable spacer systems permit any groove pattern.
Diamond Disc for normal to hard concrete and screed
For the Cutting of normal to hard Concrete
Diamond Disc for very hard concrete
Suitable for the cutting of hard to very hard Concrete
PCD Tool
PCD Tool for the PCD Drum
CT 320/340 Diamond Drum
CT 320/340 Diamond Drum
The drum can be equipped with diamond blades. Spacers in between the blades allow, for example, farm yard grooving for anti slip floors in stables. When the drum is completely equipped with diamond blades, as shown in the picture, the floor will be totally removed. Depths of up to 20 mm (standard version) are possible. The speed control of the CT 320/340 planer enables an optimal, clean finish.

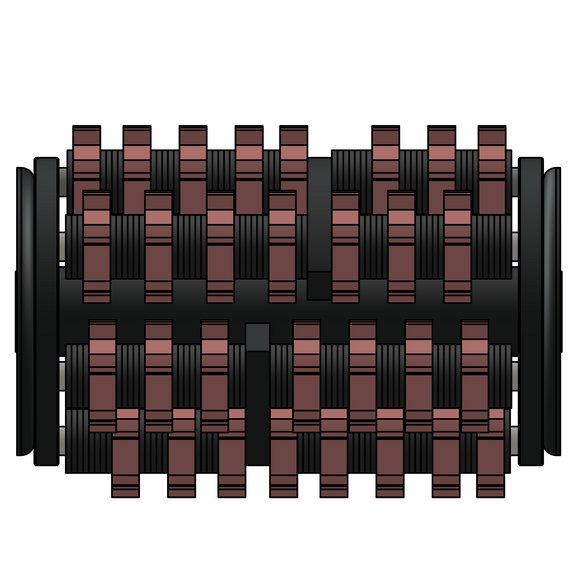

CT 320/340 Milling Cutter Drum
Drum complete with Milling Cutters
CT 320/340 Cutter Drum
CT 320/340 complete Cutter Drum
CT 320/340 PCD Drum

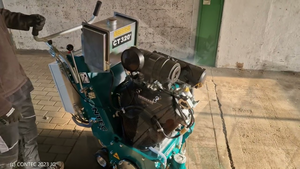

CT 320 Water Connection
The Water Connection enables the machine to spray water at the diamond blades. The water cools the tools and minimises the dust emission.
CT 320 Line up Mechanism and Extraction Wagon
The Line up Mechanism allows the planer to follow a line or a joint.
The Extraction Wagon is needed, if the machines produces dust coming out of the deep channels which it cuts. A dust collector can be connected to the wagon removing the dust.
