Scarifier Concrete
| Working Width | 250 mm |
|---|---|
| Voltage | 400 V |
| Frequency | 50 Hz |
| Phase | 3 |
| Current Consuption | 16 A |
| Motor nominal Current | 7.5 kW |
| Motor Rating | 14.8 A |
| Motor Rotation Speed | 2880 rpm |
| Weight (kg) | 142 kg |
| Height (mm) | 116 cm |
| Length (mm) | 87 cm |
| Width (mm) | 50 cm |
| Tool speed (rpm) | 1571 rpm |
| Dust Collector | CDM 3000/Tornado |
| Dust Port Diameter | 70 mm |
| Motor nominal Current (Drive Unit Motor) | 0.17 kW |
| Motor Rating (Drive Unit Motor) | 1.2 A |
| Motor Rotation Speed (Drive Unit Motor) | 3000 rpm |
The proven aggresive planer from CONTEC®! The CT 250-EA has a Drive Unit and speed control. The constant speed ensures an even planing of the surface with a drum diameter of 180 mm and a cutter / flail diameter of 57 mm - no surface will be able to resist such aggressive planing.
High aggressiveness on erosion of concrete, asphalt, coatings and road markings, bridge renovation
... also available with a water connection hose !

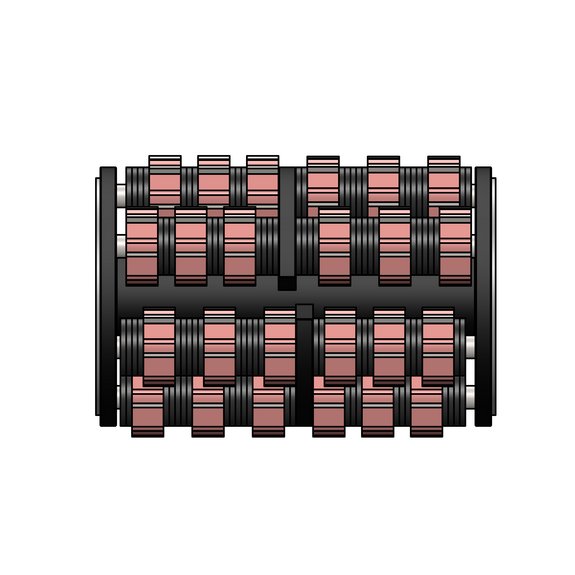

CT 250 Cutter Drum
CT 250 Cutter Drum
Milling Drum complete with Carbide Tipped Cutters

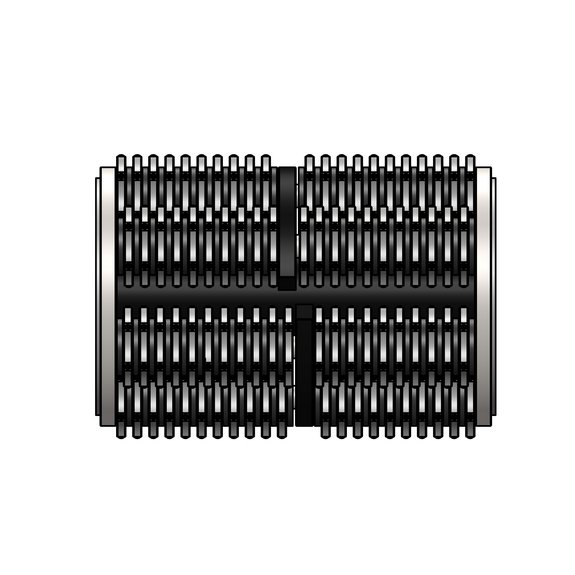

Back CT 250 Milling Cutter Drum
Drum complete with Milling Cutters
Diamond Disc 200 mm
For the cutting of normal to hard concrete
CT 250® Diamond Drum
Diamond drum with blades arranged for the cutting of 3 channels
The drum can be equipped with diamond blades. Spacers in between the blades allow, for example, farm yard grooving for anti slip floors in stables. When the drum is completely equipped with diamond blades, the floor will be totally removed. Depths of up to 10 mm are possible. The speed control of the CT 250® planer enables an optimal, clean finish.
CT 250 Line Up Mechanism
The "Line-up" Mechanism allows the planer to follow a line or a joint.
Available for all CT 250 models.
CT 250 with H20 connection hose
CT 250 Electric Drive unit now available with water Connection hose !
Available for all CT 250 models.
