Scarifier Concrete
| Working Width | 250 mm |
|---|---|
| Voltage | 400 V |
| Frequency | 50 Hz |
| Phase | 3 |
| Current Consuption | 14.8 A |
| Motor nominal Current | 7.5 kW |
| Motor Rating | 14.8 A |
| Motor Rotation Speed | 2880 rpm |
| Weight (kg) | 127.5 kg |
| Height (mm) | 112 cm |
| Length (mm) | 99 cm |
| Width (mm) | 50 cm |
| Tool speed (rpm) | 1571 rpm |
| Dust Collector | CDM 3000 |
| Dust Port Diameter | 70 mm |
Electric version

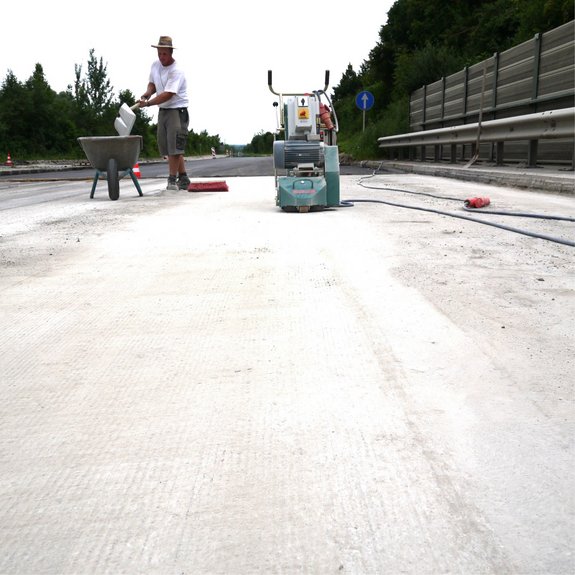

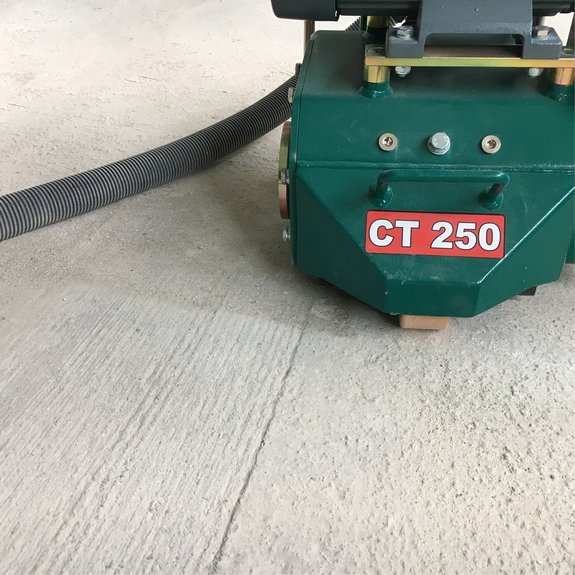

One of the most aggresive planers yet from CONTEC. With a drum diameter of 180 mm and a cutter / flail diameter of 57 mm no surface will be able to resist.
The CT 250-E is also available with drive unit.

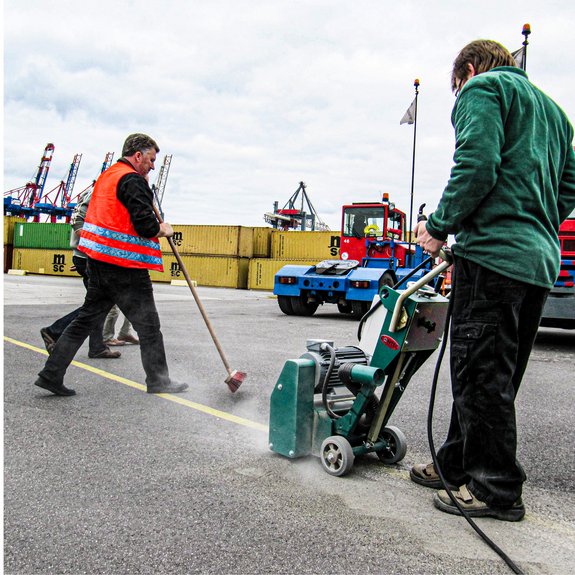

Applications: Surface Texturing, Scabbling, Planing, Grooving, Cleaning, Descaling, Removal of Road Markings, coatings and membranes.

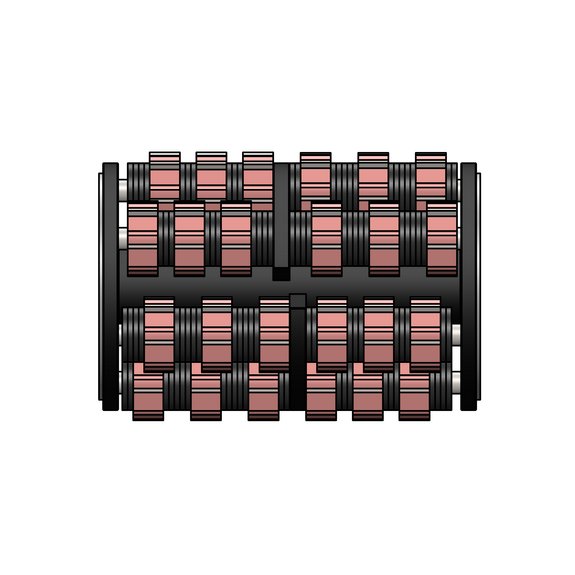

CT 250 Cutter Drum
CT 250 Cutter Drum
Milling Drum complete with Carbide Tipped Cutters
Back CT 250 Milling Cutter Drum
Drum complete with Milling Cutters
CT 250 Line Up Mechanism
The "Line-up" Mechanism allows the planer to follow a line or a joint.
Available for all CT 250 models.
CT 250 with H20 connection hose
CT 250 Electric Drive unit now available with water Connection hose !
Available for all CT 250 models.
